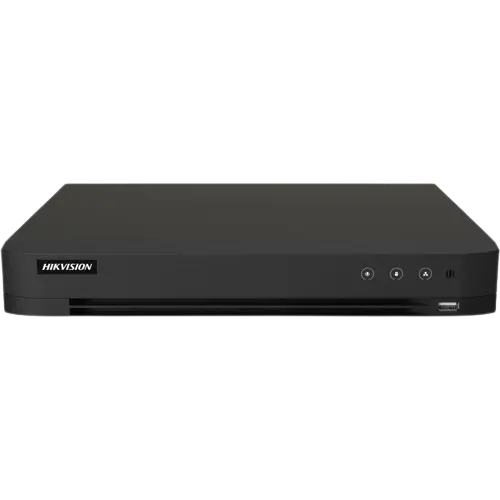

iDS-7216HQHI-M1XT

HDD damage will not cause data loss in the face picture library, because the library has

been backed up by HDD and flash

it can classify human and vehicle, and extremely reduce false alarms caused by objects

like leaves and lights;

Quick search by object or event type is supported;

Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

3K lite/5 MP lite/4 MP lite/1080p

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080p Lite@20fps;720p @20fps

For 5 MP stream access: 5 MP lite@12fps, 4MP lite@15fps/1080pLite@20fps; 720p @20fps

For 4 MP stream access: 4 MP lite@15fps / 1080pLite@25fps (P)/30fps

For 1080p stream access: 1080p / 720p @15fps; VGA @25fps (P)/30fps (N)

For 720p stream access: 720p / VGA @25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite / 5MP lite @ 12fps; 4MP lite@ 15fps, 1080p lite/720p lite/VGA @25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Up to 6 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

HDMI/VGA simultaneous output

resolution: PAL: 704 × 576, NTSC: 704 × 480

16-ch via coaxial cable
