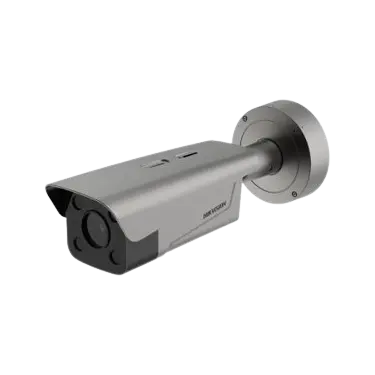

DS-TCG406-E 2.8-12mm
₨ 20,000
Hikvision DS-TCG406-E 4MP Intelligent Entrance ANPR Camera, 1/1.8″ progressive scan CMOS, Up to 2688 × 1520 resolution with real-time video, 4 built-in high-performance LEDs (integrated white light and IR), 2.8 to 12 mm/8 to 32 mm motorized vari-focal lens, Supports relay output to control vehicle barrier gate, Supports Wiegand, connectable with access control system, Supports loop triggering, radar triggering, and video triggering LPR, Supports multi-frame LPR, improving LPR rate, Up to 100,000 blocklist and allowlist, Supports offline control of barrier gate under allowlist mode, 1/1.8″ Progressive Scan CMOS, IR Light, Warm White Light Supplement Light Range: Video (25m), Vehicle License Plate: (10m), 140 dB WDR, Audio: 1 input (line in), 1 output (line out), 1 TF card slot (up to 1TB), IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013).
Free shipping
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Camera | |
| Max. Resolution | 2688 × 1520 |
| Sensor Type | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON); 0 Lux with IR |
| Shutter | 1/30 s to 1/100,000 s |
| Day/Night Switch | Supported |
| IR Cut Filter | IR cut filter; Blue glass module to reduce ghost phenomenon |
| Lens | |
| Lens Type | 2.8 mm to 12 mm 8 mm to 32 mm |
| Aperture | 2.8 mm to 12 mm: F1.2 to F2.5 8 mm to 32 mm: F1.7 to F1.73 |
| FoV | 2.8 mm to 12 mm:
horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° 8 mm to 32 mm: horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3° |
| Focus | Auto |
| Supplement Light | |
| Supplement Light Type | IR Light, Warm White Light |
| Supplement Light Range | Video:
2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
| Smart Supplement Light | IR Light, Warm White Light |
| IR Wavelength | Warm White Light 3000 K, IR Light 850 nm |
| DORI | |
| DORI | Wide:
2.8 mm to 12 mm: D: 61 m, O: 24.3 m, R: 12 m, I: 6 m 8 mm to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: 2.8 mm to 12 mm: D: 152 m, O: 60 m, R: 30 m, I: 15 m 8 mm to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m |
| Image | |
| WDR | 140 dB |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Image Settings | Saturation: 0 to 100
Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
| Image Parameters Switch | Yes |
| WDR Switch | On, Time, Brightness |
| Frame Rate | 25 fps (P)/30 fps (N) |
| Video | |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
| Video Compression | Main stream: H.265 / H.264 / MJPEG,
Sub-stream: H.265 / H.264 / MJPEG, |
| H.264 Type | Low profile medium profile High Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Type | Constant, Variable |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Capture Mode | |
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type | Strobe Light Mode |
| Capture Parameters | |
| Image Format | JPEG |
| Capture Resolution | 2688 × 1520 |
| License Plate Recognition | Forward, Backward, Bidirectional |
| Fake Plate Filter | Yes |
| LED Control | Supports automatic light control/time control of LEDs |
| Smart Recognition | ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
| Entrance and Exit | |
| Barrier Gate Control Mode | By Camera / Platform / Mixed |
| Keep Boom Pole Open for Following Vehicle | Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle | Yes |
| Relay Output | 2-ch relay output, supporting opening and closing of barrier gates |
| Barrier Gate Status | None, Barrier Gate Close in Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally
Note: Only when the TF card is available, can the function take effect. |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Interface | |
| Audio | 1 input (line in), 1 output (line out) |
| Alarm Input | 3-ch triggered inputs |
| Alarm Output | 1-ch alarm output |
| Wiegand | Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
| RS-232 | 1-ch RS-485 serial port |
| RS-485 | 1-ch RS-232 serial port |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Memory Card Slot | 1 TF card slot, up to 1 TB |
| General | |
| Power Supply | 12 to 24 VDC/PoE (802.3at, 44 VAC to 57 VAC), 300 mA to 230 mA |
| Working Consumption | 10 W Max. |
| Dimensions | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| Weight | 3.25 kg (7.17 lb.) |
| Weight (with Package) | 4.3 kg (9.48 lb.) |
| Package Size | 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) |
| Storage Conditions | Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Startup and Operating Conditions | Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity: 95% (non-condensing) |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015) |
| Security | CB (IEC 62368-1: 2014 + A11);
CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); |
| Environment | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006) |
| Protection | IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
| Smart Function | |
| LPR Accuracy | Capture rate > 98%
Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95% |
| Vehicle Type Recognition | Car / Van / Bus / Truck / Light Truck / SUV_MPV / Pickup / Pedestrian / Motorcycle / Tricycle |
| Vehicle Color | Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black |
