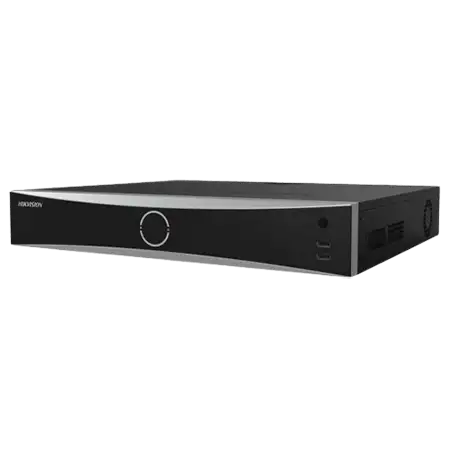

DS-7716NXI-K4
₨ 95,000
Hikvision DS-7716NXI-K4 16-ch 1.5U K Series AcuSense 4K NVR, Up to 16-ch IP camera inputs, Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity, Independent HDMI and VGA outputs, 4 SATA interfaces, 4 SATA interfaces, Motion Detection 2.0, 1-ch Facial Detection and Analytics Performance, 4-ch Face Picture Comparison, Incoming / Outgoing Bandwidth: 160 Mbps, 100 to 240 VAC.
Free shipping
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Intelligent Analytics | |
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA |
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each pictureĀ ā¤Ā 4MB, total capacityĀ ā¤Ā 1 GB) |
| Facial Detection and Analytics Performance | 1-ch, 8 MP |
| Face Picture Comparison | 4-ch |
| Motion Detection 2.0 | |
| By Device | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Perimeter Protection | |
| By Device | 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output | 1-ch, 4K (3840 Ć 2160)/30Hz, 2K (2560 Ć 1440)/60Hz, 1920 Ć 1080/60Hz, 1600 Ć 1200/60Hz, 1280 Ć 1024/60Hz, 1280 Ć 720/60Hz, 1024 Ć 768/60Hz |
| VGA Output | 1-ch, 1920 Ć 1080/60Hz, 1280 Ć 1024/60Hz, 1280 Ć 720/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | N/A |
| Audio Output | 1-ch, RCA (Linear, 1 KĪ©) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KĪ©, using the audio input) |
| Decoding | |
| Decoding Format | H.265 / H.265+ / H.264+ / H.264 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p |
| Synchronous playback | 16-ch |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC |
| Network | |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPā¢, HTTP, HTTPS |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Auxiliary Interface | |
| SATA | 4 SATA interfaces |
| Capacity | Up to 10 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/4 (16/9 is optional) |
| USB Interface | Front panel: 2 Ć USB 2.0; Rear panel: 1 Ć USB 3.0 |
| Ctrl 12V | N/A (optional to support) |
| DC 12V | N/A (optional to support) |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Consumption | ā¤Ā 20 W (without HDD) |
| Working Temperature | -10 Ā°C to 55 Ā°C (14 Ā°F to 131 Ā°F) |
| Working Humidity | 10 to 90 % |
| Dimension (W Ć D Ć H) | 445 Ć 400 Ć 75 mm (17.5″Ć 15.7″ Ć 3.0″) |
| Weight | ā¤Ā 5 kg (without HDD, 11 lb.) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
