DS-7616NXI-K1
₨ 6,500

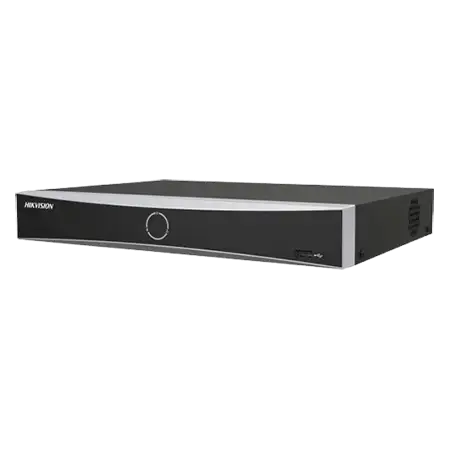

Hikvision DS-7616NXI-K1 16-ch 1U K Series AcuSense 4K NVR, 16-ch IP camera inputs, Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity, All channels support Motion Detection 2.0, 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture, Provide independent HDMI and VGA outputs, 1 SATA interface, Incoming Bandwidth: 160 Mbps, Outgoing Bandwidth: 80 Mbps, 12 VDC, 1.5A.
Free shipping
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each pictureĀ ā¤Ā 4MB, total capacityĀ ā¤Ā 1 GB) |
| FacialĀ Ā Detection and Analytics Performance | 1-ch human face capture |
| Face Picture Comparison | 4-ch face picture comparison alarm |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 16-ch |
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 Ć 2160)/30Hz, 2K (2560 Ć 1440)/60 Hz, 1920 Ć 1080/60Hz, 1600 Ć 1200/60 Hz, 1280 Ć 1024/60 Hz, 1280 Ć 720/60 Hz, 1024 Ć 768/60 Hz |
| VGA Output | 1-ch, 1920 Ć 1080/60 Hz, 1280 Ć 1024/60 Hz, 1280 Ć 720/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | N/A |
| Audio Output | 1-ch, RCA (Linear, 1 KĪ©) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KĪ©, using the audio input) |
| Decoding | |
| Decoding Format | H.265 / H.265+ / H.264+ / H.264 |
| Recording Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA |
| Synchronous Playback | 16-ch |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPā¢, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each HDD |
| USB Interface | Front panel: 1 Ć USB 2.0; Rear panel: 1 Ć USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ā¤Ā 10 W (without HDD) |
| Working Temperature | -10 Ā°C to 55 Ā°C (14 Ā°F to 131 Ā°F) |
| Working Humidity | 10% to 90% |
| Dimension (W Ć D Ć H) | 320 mm Ć 240 mm Ć 48 mm (12.6″Ć 9.4″ Ć 1.9″) |
| Weight | ā¤Ā 1 kg (without HDD, 2.2 lb.) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
