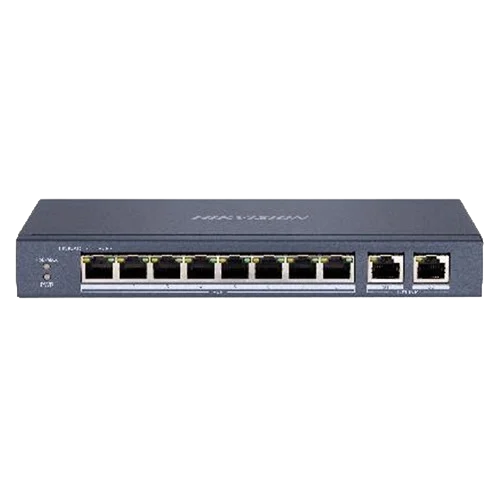

DS-3E0310P-EM
Hikvision L2 Unmanaged Switch, 8 10/100M RJ45 PoE ports, 2 Gigabit RJ45 uplink ports, 802.3af/at, PoE power budget 60W, max. 300m long distance transmission, 6KV surge ,48 VDC, 1.35A
Free shipping
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Network Parameters | |
| Port Number | 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 16 K |
| Switching capacity | 5.6 Gbps |
| Packet forwarding rate | 4.1664 Mpps |
| Internal cache | 4 Mbits |
| Internal cache | 768 Kbits |
| PoE Power Supply | |
| PoE standard | Ports 1 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE port | Ports 1 to 8 |
| Max. port power | Ports 1 to 8: 30 W |
| PoE Power Budget | 60 W |
| Dialing function | |
| Long range | Ports 1 to 8: up to 300 m. |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 1.20 kg (2.65 lb) |
| Net weight | 0.555 kg (1.22 lb) |
| Dimension (L × H × D) | 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”) |
| Operating temperature | -10°C to 40°C (14°F to 104°F) |
| Storage temperature | -40°C to 85 °C -40°F to 185°F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 1.35 A |
| Power consumption in idle | < 5 W |
| Max. power consumption | 65 W |
| Power source | 65 W |
