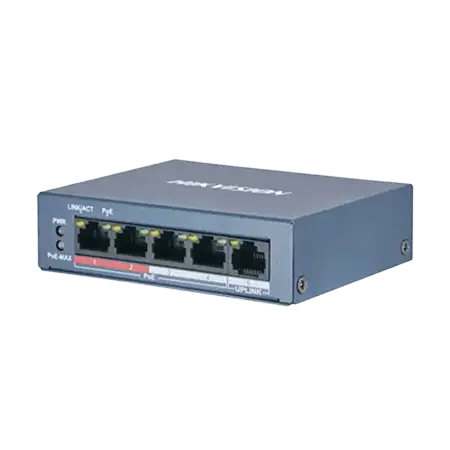

DS-3E0105P-EM 5-Port Gigabit PoE Network Switch

Description

The DS-3E0105P-EM is a compact 5-port Gigabit PoE switch designed for small-scale networks, IP cameras, and smart surveillance systems. Featuring 4 PoE-enabled 100M ports and 1 standard 100M Ethernet port, this switch provides reliable power and data transmission over a single cable, simplifying network installation and reducing clutter. Supporting IEEE 802.3af/at PoE standards, it delivers up to 30W per port and 35W total power, ensuring efficient connectivity for IP cameras, access points, and VoIP devices.

Built with a metal fanless housing, the switch operates silently and reliably even in challenging environments. It supports full duplex, MDI/MDI-X adaptive ports, store-and-forward switching, and a MAC address table of 1K entries, providing stable and high-speed performance with a packet forwarding rate of 0.744 Mpps. Ports 1–2 are prioritized, and all 4 PoE ports support long-distance transmission, making it ideal for network expansion in offices or surveillance setups.

With compact dimensions (105 × 27.6 × 83.1 mm) and a weight of only 0.2 kg, this switch is easy to install in tight spaces. It operates in 0°C to 40°C, with relative humidity up to 95%, and is powered via 48VDC, 0.8A, ensuring durable, energy-efficient network connectivity.
