DS-2SE4C425MWG-E (14F0)

DS-2SE4C425MWG-E (14F0)

₨ 9,700

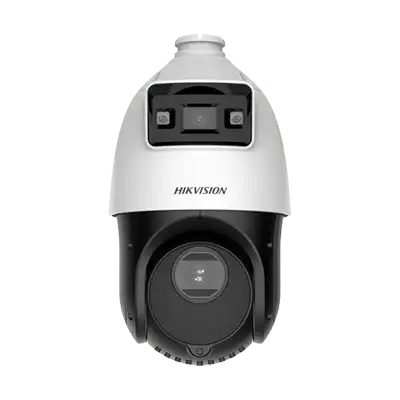

Hikvision DS-2SE4C425MWG-E (14F0) TandemVu 4-inch 4MP 25X Colorful & IR Network Speed Dome, Powered-by-DarkFighter technology & ColorVu technology, 25x Optical Zoom & 16x Digital Zoom, Supports 120dB WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, [PTZ channel]: up to 100m IR Range; [Bullet channel]: up to 30m White Light, Built-in memory card slot, Focuses on human and vehicle targets classification based on deep learning, 12VDC, PoE+, IP66 Standard.

Free shipping

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
Category:

Description

Camera
Image Sensor [Bullet channel]: 1/3″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scanĀ CMOS
Min. Illumination [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter Yes
Focus semi-auto, manual, auto
DayĀ ļ¼†Ā Night ICR
Zoom [PTZ channel] 25 Ɨ optical, 16 Ɨ digital
Day/Night Switch day, night, auto, scheduled-switch
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Max. Resolution [Bullet channel] 2560 Ɨ 1440, [PTZ channel] 2560 Ɨ 1440
Lens
Focal Length [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 Ɨ optical
Zoom Speed [PTZ channel]: approx. 3.6 s
FOV [Bullet channel]: Horizontal field of view: 96.1Ā°,

Vertical field of view: 52.1Ā°ļ¼Œ

Diagonal field of view: 113.3Ā°;

[PTZ channel]:

Horizontal field of view: 55Ā° to 2.4Ā° (wide-tele),

Vertical field of view: 33Ā° to 1.4Ā° (wide-tele),

Diagonal field of view: 61.5Ā° to 2.8Ā° (wide-tele)
Aperture [Bullet channel]: F1.0; [PTZ channel]: F1.6
Illuminator
Supplement Light Type [PTZ channel]: IR; [Bullet channel]: White Light
Smart Supplement Light Yes
Supplement Light Range [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
PTZ
Movement Range (Pan) 360Ā°
Movement Range (Tilt) -15Ā° to 90Ā° (auto flip)
Pan Speed pan speed: configurable from 0.1Ā° to 80Ā°/s; preset speed: 80Ā°/s
Tilt Speed tilt speed: configurable from 0.1Ā° to 80Ā°/s, preset speed 80Ā°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
Park Action preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Exception Detection IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
Video
Region of Interest (ROI) 8 fixed regions for each stream
Stream Type main stream, sub-stream, third stream
Main Stream [Bullet channel]:

50 Hz: 25 fps (2560 Ɨ 1440, 1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720)

60 Hz: 30 fps (2560 Ɨ 1440, 1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720)

[PTZ channel]:

50 Hz: 25 fps (2560 Ɨ 1440, 1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720)

60 Hz: 30 fps (2560 Ɨ 1440, 1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720)
Sub-Stream [Bullet channel]:

50 Hz: 25 fps (704 Ɨ 576, 640 Ɨ 480, 352 Ɨ 288)

60 Hz: 30 fps (704 Ɨ 480, 640 Ɨ 480, 352 Ɨ 240)

[PTZ channel]:

50 Hz: 25 fps (704 Ɨ 576, 640 Ɨ 480, 352 Ɨ 288)

60 Hz: 30 fps (704 Ɨ 480, 640 Ɨ 480, 352 Ɨ 240)
Third Stream [Bullet channel]:

50 Hz: 25 fps (1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720, 704 Ɨ 576, 640 Ɨ 480, 352 Ɨ 288)

60 Hz: 30 fps (1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720, 704 Ɨ 480, 640 Ɨ 480, 352 Ɨ 240)

[PTZ channel]:

50 Hz: 25 fps (1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720, 704 Ɨ 576, 640 Ɨ 480, 352 Ɨ 288)

60 Hz: 30 fps (1920 Ɨ 1080, 1280 Ɨ 960, 1280 Ɨ 720, 704 Ɨ 480, 640 Ɨ 480, 352 Ɨ 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile
H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
Smart Features
Smart Record ANR, Dual-VCA
Network
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Network Storage NAS (NFS, SMB/ CIFS), ANR
Image Settings sharpness, saturation, brightness, contrast
Wide Dynamic Range (WDR) 120 dB
SNR ā‰„Ā 52 dB
Defog Digital defog
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Regional Focus Yes
Regional Exposure Yes
Image Parameters Switch Yes
Privacy Mask [Bullet channel] 8 programmable polygon privacy masks,

[PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage Built-in memory card slot, support Micro SD / Micro SDHC / Micro SDXC, up to 256 GB
Alarm Input 1 alarm input
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k OhmĀ±10%
Audio Output 1 audio output, line level, impedance: 600 Ī©
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event audio exception detection, region entrance detection, region exiting detection, intrusion detection, Line crossing detection
Alarm Linkage [Bullet channel] Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, and trigger recording

[PTZ channel] Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Face Capture [Bullet channel] no, [PTZ channel] yes
General
General Function mirror, password protection, watermark, IP address filter
Power 12VDC, PoE+
Power Consumption and Current Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
Reset yes
Demist Demist by heating the glass
Material ADC12
Dimensions Ƙ 166 mm Ɨ 375 mm (Ƙ 6.5″ Ɨ 14.7″)
