DS-2CD2745FWD-IZS 2.7-12mm

DS-2CD2745FWD-IZS 2.7-12mm

₨ 6,500

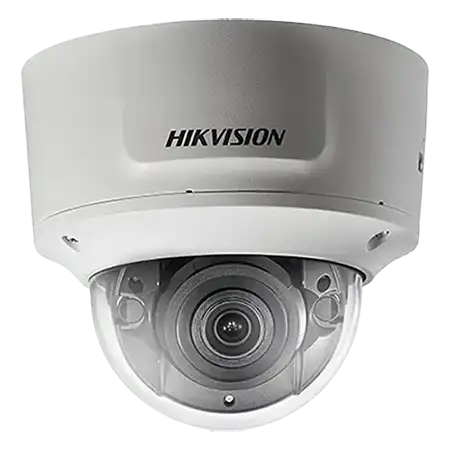

Hikvision 4MP IR Varifocal Network Dome Camera, Powered by DarkFighter, 2688 x 1520@30fps with H.265+/H.265 Support, 30m EXIR Range, 120dB True WDR, 3D-DNR, BLC, ROI, HLC, True Day & Night with ICR, Advanced Smart Features Set, IK10 Vandal Resistant, IP66 Weatherproof, SD Card Slot upto 128GB, Motorized vari-focal Lens, Support PoE

Free shipping

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
Category:

Description

Camera
Image Sensor 1/2.5″ Progressive Scan CMOS
Min. Illumination Color: 0.009 lux @(F1.2, AGC ON), 0.016 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0Ā° to 355Ā°, tilt: 0Ā° to 75Ā°, rotate: 0Ā° to 355Ā°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.2
Focus Auto
FOV 2.8 mm to 12 mm, horizontal FOV: 114Ā° to 32Ā°, vertical FOV: 59Ā° to 18Ā°, diagonal FOV: 141Ā° to 36.5Ā°
Lens Mount Ī¦14
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard
Video Compression Main stream: H.265 / H.264

Sub-stream: H.265 / H.264 / MJPEG

Third stream: H.265 / H.264
H.264 Type Main Profile / High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711 / G.722.1 / G.726 / MP2L2 / PCM
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2560 Ɨ 1440
Main Stream 50Hz: 25 fps (2560 Ɨ 1440, 2304 Ɨ 1296, 1920 Ɨ 1080)

60Hz:30 fps (2560 Ɨ 1440, 2304 Ɨ 1296, 1920 Ɨ 1080)
Sub-Stream 50Hz: 25 fps (640 Ɨ 480, 640 Ɨ 360, 320 Ɨ 240)

60Hz: 30 fps (640 Ɨ 480, 640 Ɨ 360, 320 Ɨ 240)
Third Stream 50Hz: 25 fps (1280 Ɨ 720, 640 Ɨ 360, 352 Ɨ 288)

60Hz: 30 fps (1280 Ɨ 720, 640 Ɨ 360, 352 Ɨ 240)
Image Enhancement BLC / 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser
Target Cropping No
SVC H.264 and H.265 encoding support
Day / Night Switch Day / Night / Auto / Schedule / Triggered by alarm in
Network
Network Storage Support microSD / SDHC / SDXC card (128G), local storage and NAS (NFS, SMB / CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users

3 Levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output
Video Output 1Vp-p Composite Output(75Ī©) (For adjustment only)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD / SDHC / SDXC slot, up to 128 GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz / 16kHz / 32kHz / 44.1kHZ / 48kHz
General
Operating Conditions -30 Ā°C to +60 Ā°C (-22 Ā°F to +140 Ā°F), humidity 95% or less (non-condensing)
Power Supply 12 VDC Ā± 25%, terminal block for DC input PoE(802.3af, class 3)
Power Consumption and Current 12 VDC, 1 A, max. 11 W

PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.5 W
Protection Level IP67, IK10
Material Metal
Dimensions Ī¦153.4 Ɨ 133.1 mm (Ī¦6″ Ɨ 5.2″)
Weight Camera: 1287 g (2.8 lb.)
