DS-2CD2043G2-IU 4mm

DS-2CD2043G2-IU 4mm

₨ 5,500

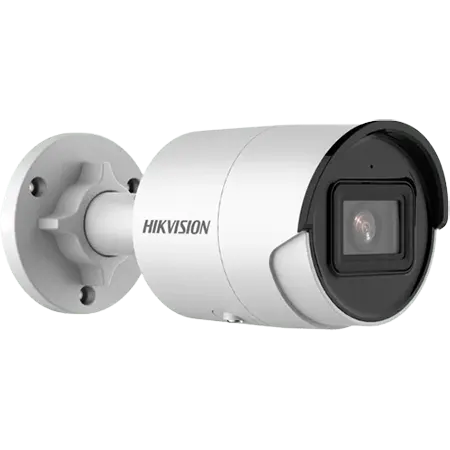

Hikvision DS-2CD2043G2-IU 4MP WDR Fixed Bullet Network Camera, 1/3″ Progressive Scan CMOS; H.265+, Color: 0.005 Lux @ (F1.6, AGC ON), 0 lux with IR, 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), VCA functions; 3 streams, 3D DNR; BLC/HLC; ICR, EXIR, up to 40m IR, Built-in Micro SD/SDHC/SDXC slot, Built-in Microphone, DC12V&PoE.

Free shipping

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
Category:

Description

Camera
Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type & FOV Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 100°
Aperture F1.6
Lens Mount M12
DORI
DORI 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Illuminator
IR Range Up to 40 m
Wavelength 850 nm
Video
Max. Resolution 2688 × 1520
Main Stream 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360)

60Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265 / H.264 / H.264+ / H.265+
Sub-stream: H.265 / H.264
Third stream: H.265 / H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
On-board Storage Built-in micro SD Slot
Built-in Microphone Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Face Detection Yes
Deep Learning Function
Perimeter Protection Line crossing detection, intrusion detection Supports human and vehicle targets classification
General
Linkage Method Upload to FTP / memory card / NAS, notify surveillance center, trigger record, trigger capture
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, reverse polarity protection
PoE: (802.3af, 36 V to 57 V), Class 3
Power Consumption and Current 12 VDC, 0.5 A, max. 6W

PoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Power Interface Ø5.5 mm coaxial power plug
Camera Dimension Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Camera Weight Approx. 490 g (1.1 lb.)
